Sumitomo

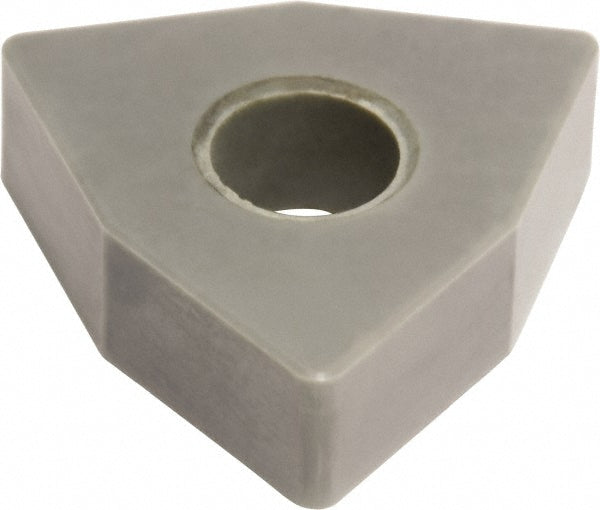

W - Trigon 80-Deg 1/2" IC Ceramic Insert, Grade SN2000K - Sumitomo U103952
MFR# U103952ISO/ANSI# WNGA080402Series WNGA
$15.61List $20.01
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeSN2000K
MaterialCeramic
Description
The Sumitomo U103952 is a ceramic indexable insert, grade SN2000K. Suited for cast iron.
Specifications
Ansi insert codeWNGA432
Ansi size code432
Chip breakerA
Clearance codeN
Corner radius in1/32
Grade characteristicsCast Iron (K) - High Wear-Resistance
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialCeramic
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNGA
Insert thickness in3/16
Iso insert codeWNGA080402
Iso size code080402
Manufacturer gradeSN2000K
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeG
