Sumitomo

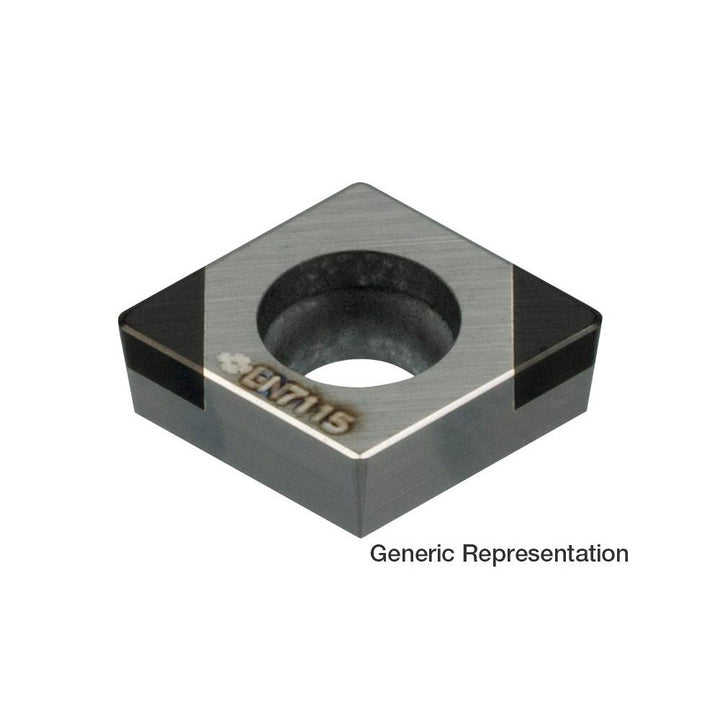

NU-CCGW060208 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BN7500, Coated - Sumitomo U104125
MFR# U104125ISO/ANSI# NU-CCGW060208Series CCG
$71.10List $91.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeBN7500
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
CoatingCoated
Description
The Sumitomo U104125 is a NU-CCGW060208 polycrystalline cubic boron nitride (pcbn) indexable insert, grade BN7500, Coated coated. Suited for cast iron, hard material, superalloy.
Specifications
Chip breakerA
Clearance codeC
Coating finishCoated
Coating processUncoated
Corner radius in1/32
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.0945
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond
Insert size code21.5
Insert style2NU-CCGA
Insert thickness in3/32
Iso codeNU-CCGW060208
Manufacturer gradeBN7500
Number of cutting edges1
Primary workpiece materialCast Iron; Hard Material; Superalloy
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
