Sumitomo

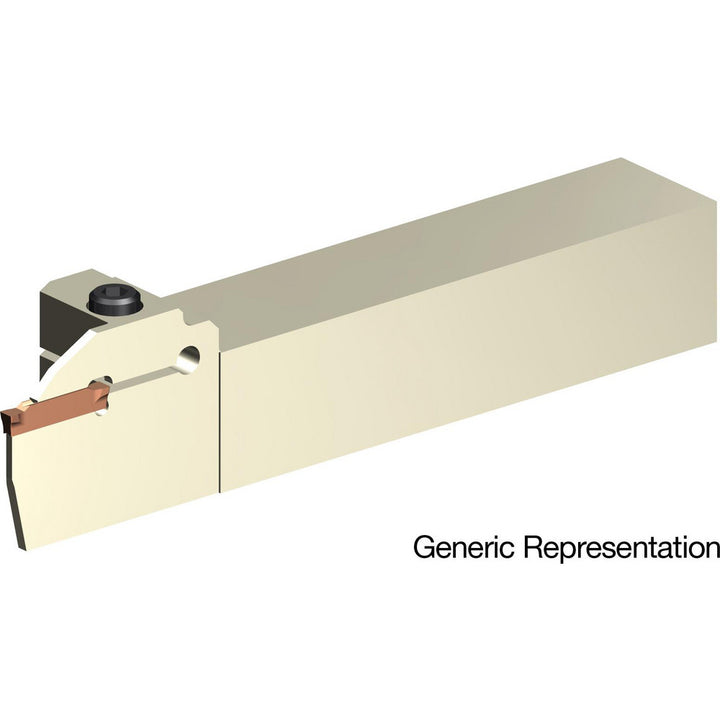

Indexable Grooving - Sumitomo U104413
MFR# U104413Series GND
$196.77
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo U104413 indexable grooving. Series GND.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeGCML; GCMN; GCMR
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.7520
Insert compatibilityGCML; GCMN; GCMR
Insert holding methodScrew
Internal or externalExternal
Maximum depth of cut0.7500
Minimum groove width0.0787
Multi use toolYes
Overall length in6
Shank height in1
Shank length4.2480
Shank width diameter in1
Toolholder materialSteel
Toolholder styleGNDL
Toolholder typeNon-Face Grooving
