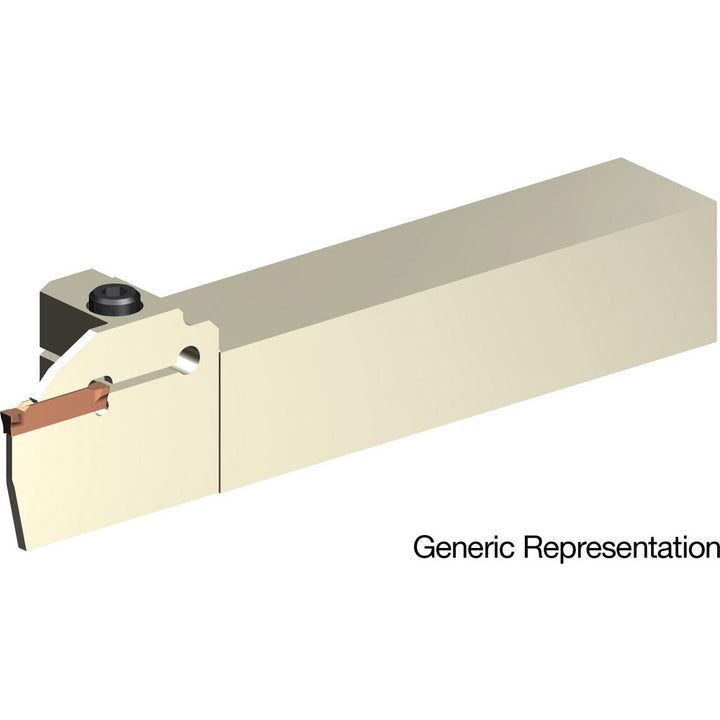

Indexable Grooving - Sumitomo U104414
MFR# U104414Series GND
$196.77
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo U104414 indexable grooving. Series GND.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeGCML; GCMN; GCMR
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.7520
Insert compatibilityGCML; GCMN; GCMR
Insert holding methodScrew
Internal or externalExternal
Maximum depth of cut0.7500
Multi use toolYes
Overall length in6
Shank height in1
Shank length4.2480
Shank width diameter in1
Toolholder styleGND
Toolholder typeNon-Face Grooving
