Sumitomo

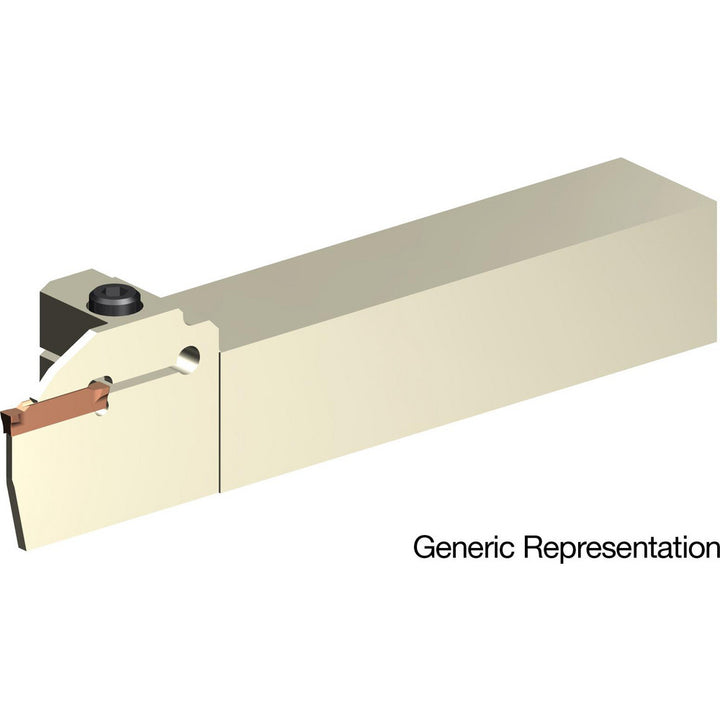

Indexable Grooving - Sumitomo U105408
MFR# U105408Series GND
$184.77List $203.38
Save 9%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo U105408 indexable grooving. Series GND.
Specifications
Back of bar to cutting edge0.7500
Compatible insert size codeGCML; GCMN; GCMR
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.7520
Insert compatibilityGCML; GCMN; GCMR
Insert holding methodScrew
Internal or externalExternal
Maximum depth of cut0.7500
Minimum groove width0.1181
Multi use toolYes
Overall length in5
Shank height in3/4
Shank length3.2480
Shank width diameter in3/4
Toolholder materialSteel
Toolholder styleGNDL
Toolholder typeNon-Face Grooving
