Supermill

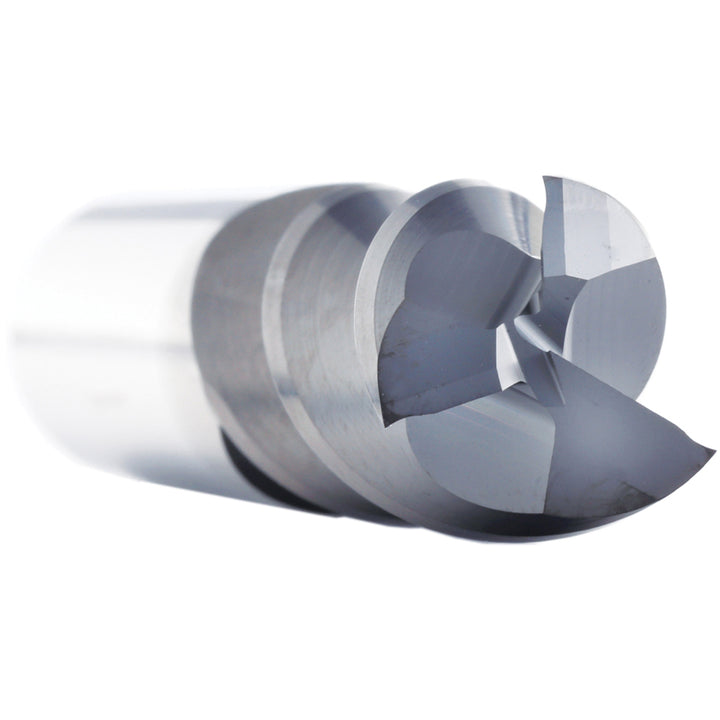

1/4" 3-Flute Solid Carbide Square End Mill, DLC - Supermill 5250015
MFR# 5250015Series AL3F
$81.27List $104.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
CoatingDLC
Description
The Supermill 5250015 is a 1/4 3-flute Solid Carbide (Micrograin) square end mill with a DLC finish for longer tool life. Suited for aluminum & non-ferrous. 1-1/8 length of cut, 3 overall length. Series AL3F.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishDLC
Coating finish familyDLC
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Material gradeMicrograin
Mill diameter in1/4
Number of flutes3
Overall length in3
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in1/4
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
