Supermill

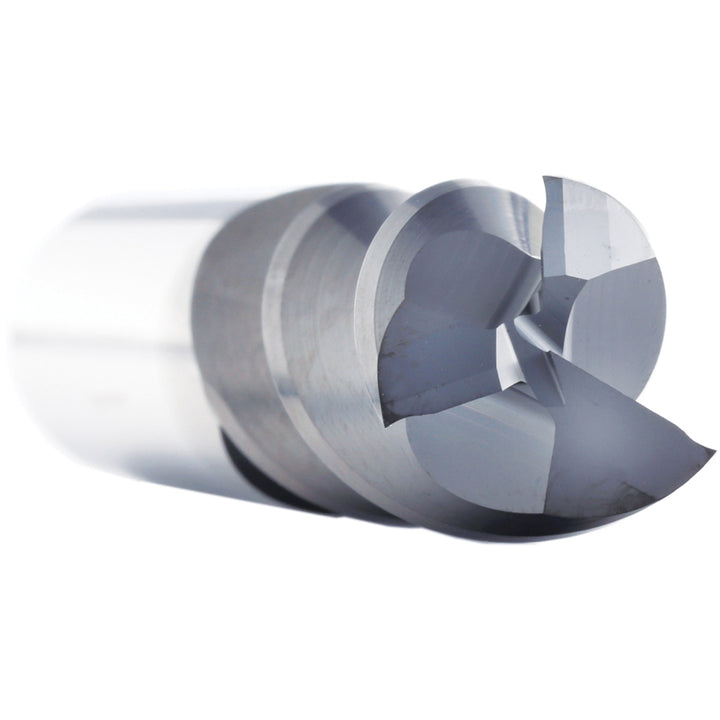

1/2" 3-Flute Solid Carbide Square End Mill, DLC - Supermill 5250056

MFR# 5250056Series AL3F

$190.26List $244.02 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingDLC

Description

The Supermill 5250056 is a 1/2 3-flute Solid Carbide (Micrograin) square end mill with a DLC finish for longer tool life. Suited for aluminum & non-ferrous. 2 length of cut, 4 overall length. Series AL3F.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDLC

Coating finish familyDLC

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in2

Length of cut range2.0000+

Material gradeMicrograin

Mill diameter in1/2

Number of flutes3

Overall length in4

Primary workpiece materialAluminum & Non-Ferrous

Shank diameter in1/2

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
