Supermill

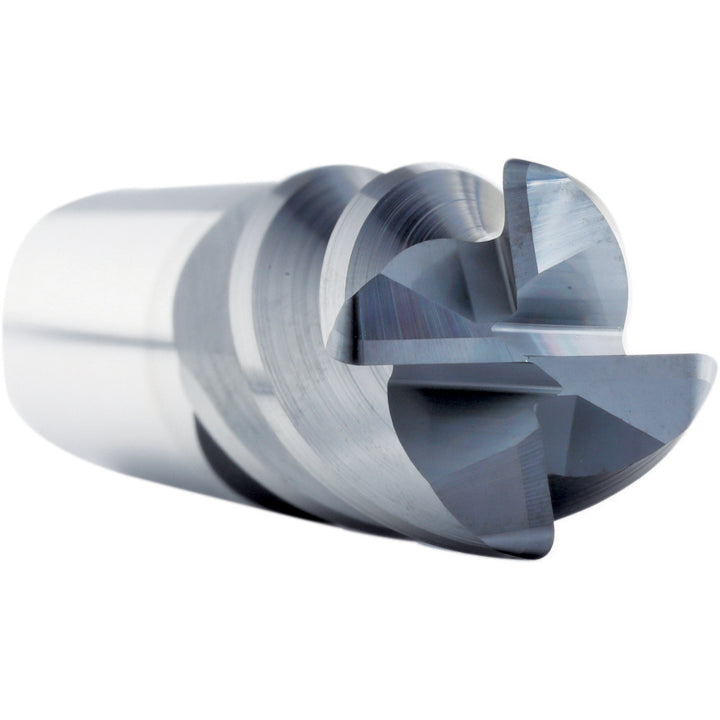

5/32" 4-Flute Solid Carbide Ball End Mill, AlCrN - Supermill 5250908
MFR# 5250908Cat# 21005Series SAPB
$32.83List $42.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide
CoatingAlCrN
Description
The Supermill 5250908 is a 5/32 4-flute Solid Carbide (Micrograin) ball end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 5/16 length of cut, 2 overall length. Series SAPB.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlCrN
Coating finish familyAlCrN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Helix styleMedium
Length of cut in5/16
Length typeStandard
Manufacturers catalog number21005
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in5/32
Neck length0.0000
Nose radius0.0782
Number of flutes4
Overall length in2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy
Reach length0.3125
Shank diameter in3/16
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
