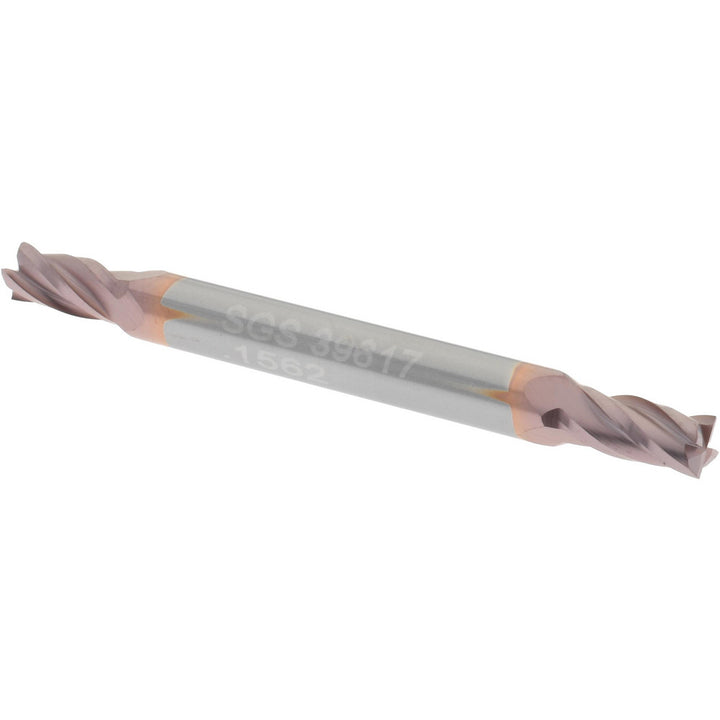

5/32" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39617

SGS

5/32" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39617

MFR# 39617Series 14

$42.19List $53.17 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 39617 is a 5/32 4-flute Solid Carbide (Micrograin) square end mill. 5/16 length of cut, 2 overall length. Series 14.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/16
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Hertel5/32" 4-Flute Solid Carbide Square End Mill - Hertel 750037 $15.71 OSG5/32" 4-Flute Solid Carbide Square End Mill - OSG 414-1562 $16.24 Supermill5/32" 4-Flute Solid Carbide Ball End Mill, AlTiN - Supermill 5250909 $44.99 Titan USA5/32" 4-Flute Solid Carbide Square End Mill, TiCN - Titan USA TC90910 $20.52
