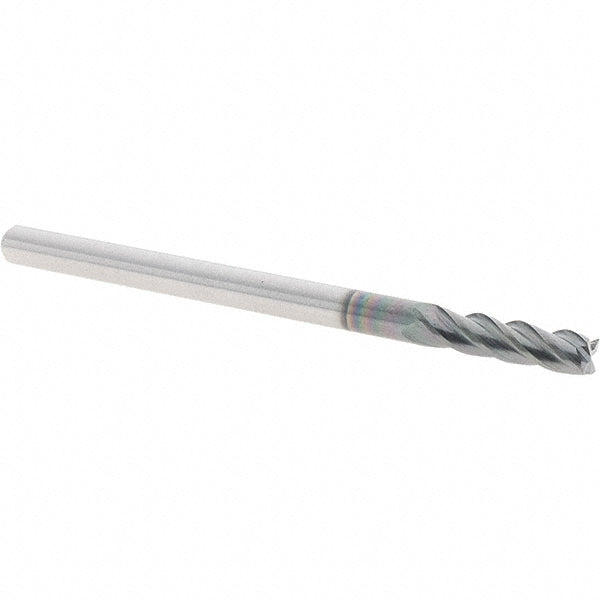

1/8" 4-Flute Solid Carbide Square End Mill, AlTiN - Supermill 5251060

Supermill

1/8" 4-Flute Solid Carbide Square End Mill, AlTiN - Supermill 5251060

MFR# 5251060Series SAP-NB

$27.93List $35.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Supermill 5251060 is a 1/8 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. Suited for hardened materials, high-temp alloy. 1/2 length of cut, 1-1/2 overall length. Series SAP-NB.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Material gradeMicrograin
Mill diameter in1/8
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes4
Overall length in1-1/2
Overall length tolerance+0.0500/-0.0000 in
Primary workpiece materialHardened Materials; High-Temp Alloy
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

OSG1/8" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 447-125011 $17.06 RobbJack1/8" 4-Flute Solid Carbide Square End Mill - RobbJack NR-404-04 $25.44 ProMax1/8" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 155-00814 $22.69 OSG1/8" 4-Flute Solid Carbide Square End Mill - OSG 36040511 $28.96
