Supermill

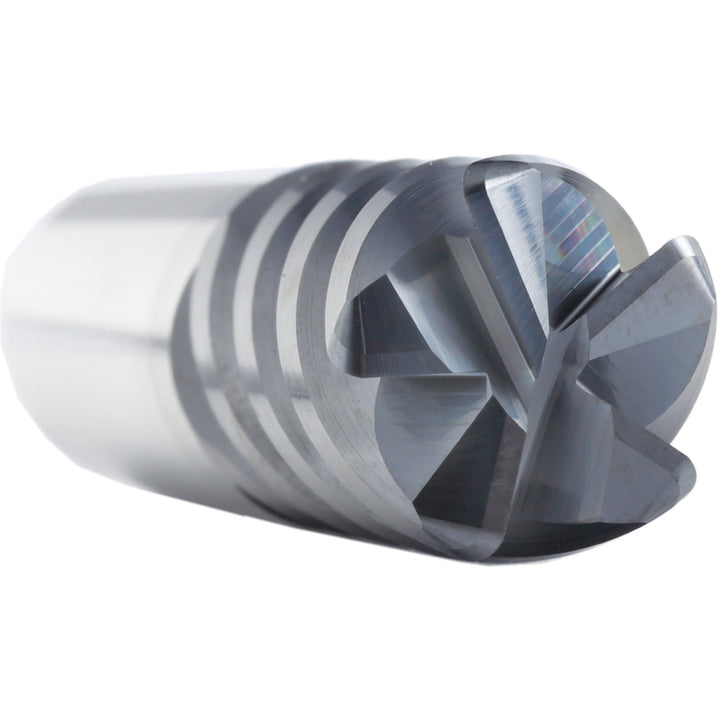

1/8" 5-Flute Solid Carbide Square End Mill, AlTiN - Supermill 5251758

MFR# 5251758Series SM5F-NB

$31.61List $40.54 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Supermill 5251758 is a 1/8 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. Suited for hardened materials, high-temp alloy. 1/2 length of cut, 1-1/2 overall length. Series SM5F-NB.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Material gradeMicrograin

Mill diameter in1/8

Number of flutes5

Overall length in1-1/2

Primary workpiece materialHardened Materials; High-Temp Alloy

Shank diameter in1/8

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
