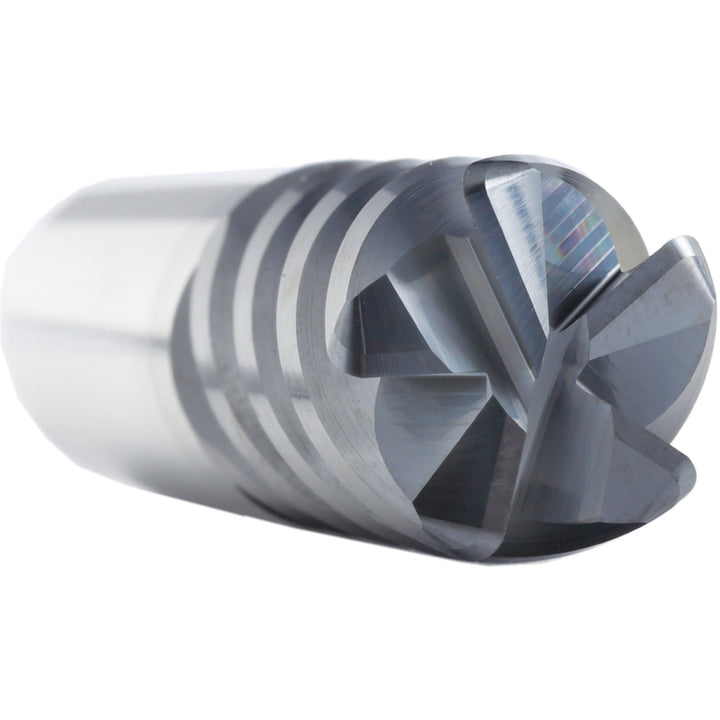

3/8" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - Supermill 5251889

Supermill

3/8" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - Supermill 5251889

MFR# 5251889Cat# SM5FSeries SM5F

$65.16List $83.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes5
MaterialSolid Carbide
CoatingAlCrN

Description

The Supermill 5251889 is a 3/8 5-flute Solid Carbide (Micrograin) corner radius end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 9/16 length of cut, 2 overall length. Series SM5F.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlCrN
Coolant throughNo
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in9/16
Length typeShort
Manufacturers catalog numberSM5F
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in3/8
Number of flutes5
Overall length in2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Shank diameter in3/8
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
