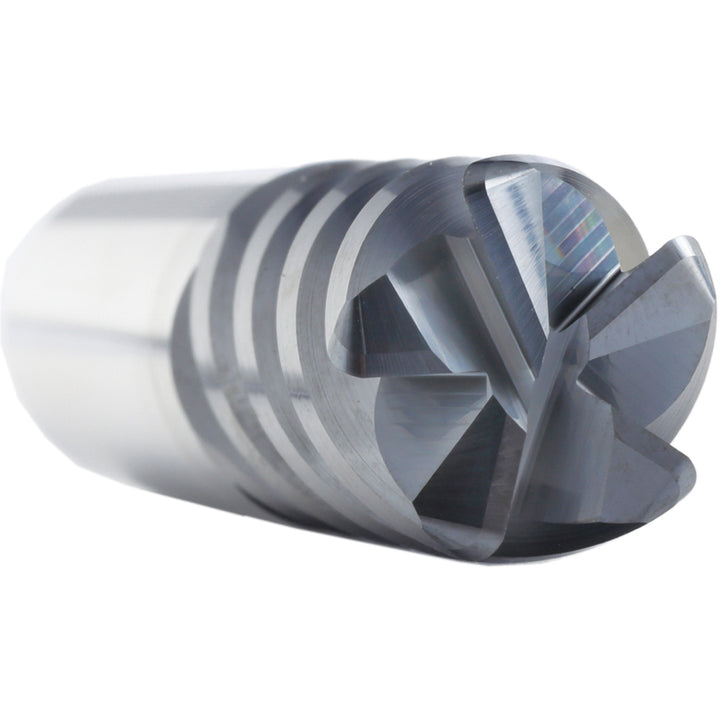

1/2" 5-Flute Solid Carbide Square End Mill, AlCrN - Supermill 5251963

Supermill

1/2" 5-Flute Solid Carbide Square End Mill, AlCrN - Supermill 5251963

MFR# 5251963Series SM5F

$148.95List $191.03 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlCrN

Description

The Supermill 5251963 is a 1/2 5-flute Solid Carbide (Micrograin) square end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, high-temp alloy, cast iron. 2 length of cut, 4 overall length. Series SM5F.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlCrN
Coating finish familyAlCrN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in2
Length of cut range2.0000+
Material gradeMicrograin
Mill diameter in1/2
Number of flutes5
Overall length in4
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy; Cast Iron
Shank diameter in1/2
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
