Supermill

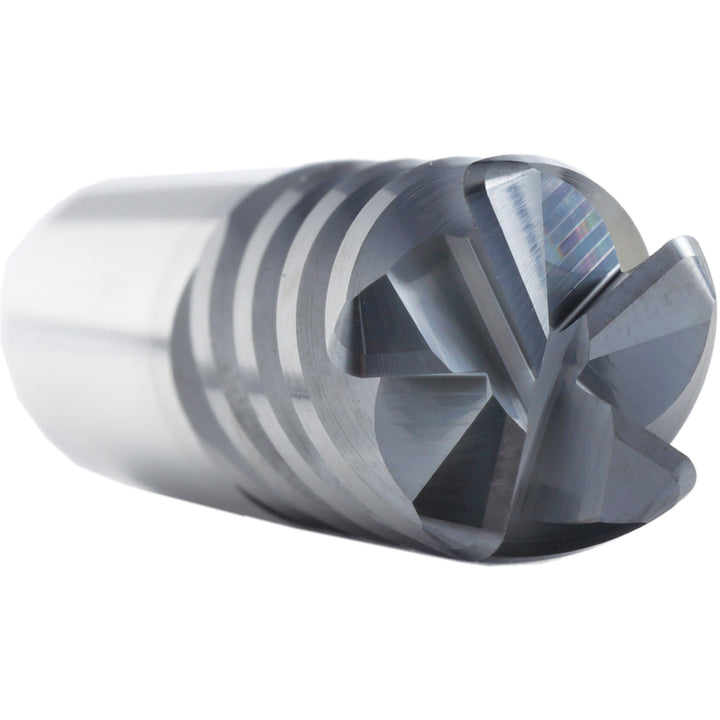

1/2" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Supermill 5252011

MFR# 5252011Cat# SM5F-NBSeries SM5F-NB

$119.46List $153.22 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Supermill 5252011 is a 1/2 5-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for hard material, superalloys & titanium. 1 length of cut, 3 overall length. Series SM5F-NB.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0620

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in1

Length typeShort

Manufacturers catalog numberSM5F-NB

Material applicationHard Material; High-Temperature Alloy; Titanium

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in1/2

Number of flutes5

Overall length in3

PitchNormal

Primary workpiece materialHard Material; Superalloys & Titanium

Shank diameter in1/2

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
