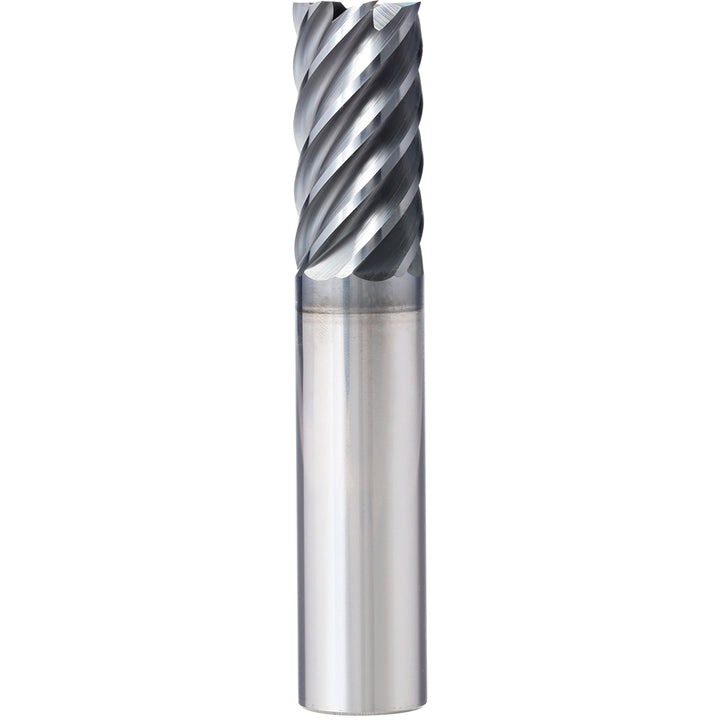

5/8" 7-Flute Solid Carbide Square End Mill, AlCrN - Supermill 5252455

MFR# 5252455Series SM7F

$161.39List $206.98 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes7

MaterialSolid Carbide

CoatingAlCrN

Description

The Supermill 5252455 is a 5/8 7-flute Solid Carbide (Micrograin) square end mill with a AlCrN finish for longer tool life. Suited for high-temp alloy. 1-1/2 length of cut, 3-1/2 overall length. Series SM7F.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coating finish familyAlCrN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1-1/2

Length of cut range1.5000 - 2.0000

Material gradeMicrograin

Mill diameter in5/8

Number of flutes7

Overall length in3-1/2

Primary workpiece materialHigh-Temp Alloy

Shank diameter in5/8

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
