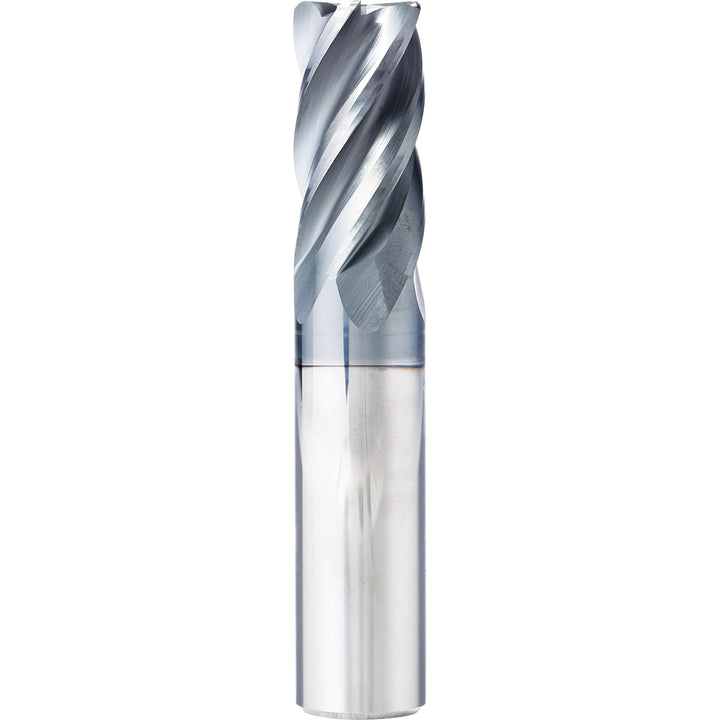

1/2" 5-Flute Solid Carbide Square End Mill, AlCrN - Supermill 5253057

Supermill

1/2" 5-Flute Solid Carbide Square End Mill, AlCrN - Supermill 5253057

MFR# 5253057Series TC5F

$100.38List $128.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlCrN

Description

The Supermill 5253057 is a 1/2 5-flute Solid Carbide (Micrograin) square end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1 length of cut, 3 overall length. Series TC5F.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlCrN
Coating finish familyAlCrN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angleVariable
Length of cut in1
Length of cut range1.0000 - 1.2500
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes5
Overall length in3
Overall length tolerance+0.0500/-0.0000 in
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixYes
Variable indexYes
