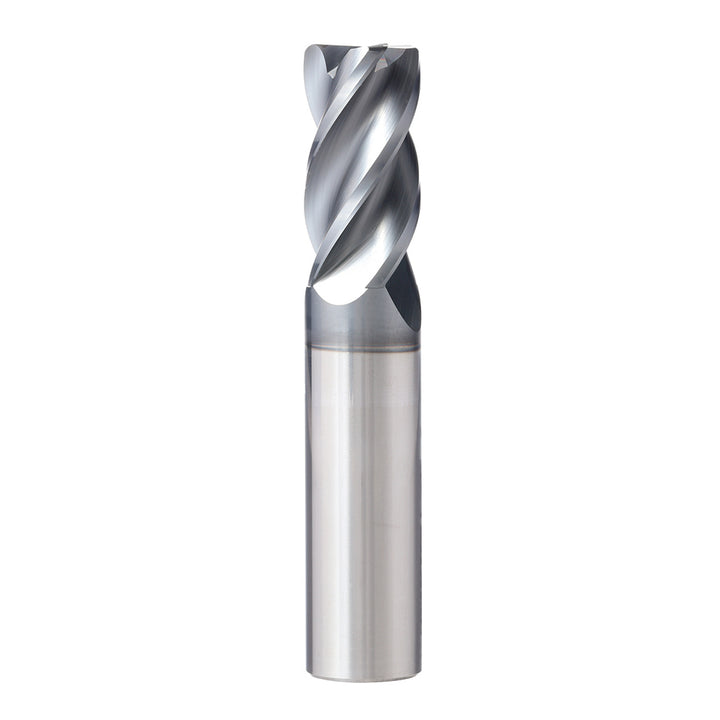

1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlCrN - Supermill 5253368

MFR# 5253368Series XPVS

$104.85List $134.48 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Supermill 5253368 is a 1/2 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1-1/4 length of cut, 3 overall length. Series XPVS.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coolant throughNo

Corner radius0.0450

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Length of cut in1-1/4

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/2

Number of flutes4

Overall length in3

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Shank diameter in1/2

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
