Supermill

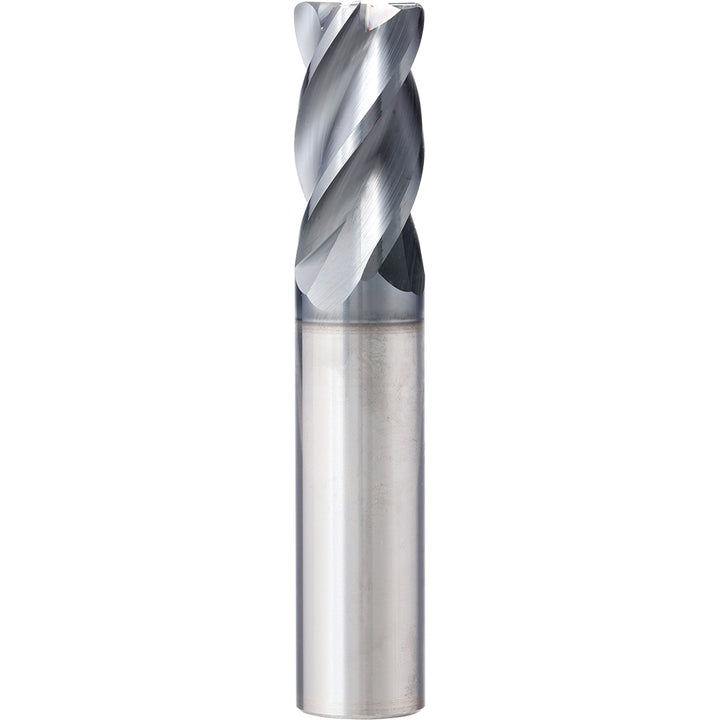

1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlCrN - Supermill 5253535

MFR# 5253535Cat# XPV500-030Series XPV

$97.47List $125.02 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Supermill 5253535 is a 1/2 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlCrN finish for longer tool life. Suited for superalloys & titanium. 1 length of cut, 3 overall length. Series XPV.

Specifications

Additional information4 Flute. Variable Helix. Variable Pitch. Full Eccentric Relief. Sharp or Radius Corners. AICrN Coating

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeVariable

For use withToolholders

Length of cut in1

Length typeStandard

Manufacturers catalog numberXPV500-030

Material applicationSuperalloys & Titanium

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/2

Number of flutes4

Overall length in3

PitchVariable

Primary workpiece materialSuperalloys & Titanium

Reach length in1

Shank diameter in1/2

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
