Thin Bit

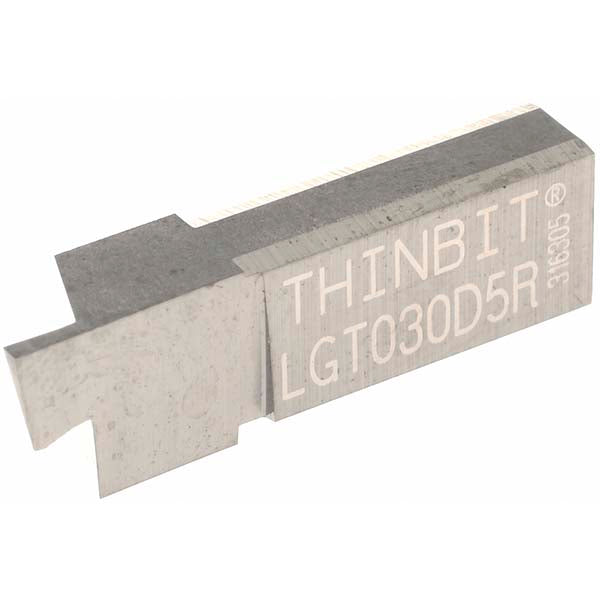

Solid Carbide Insert, Grade Dura-Max 5000 - Thin Bit LGT030D5R
MFR# LGT030D5R
$18.63List $21.72
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDura-Max 5000
MaterialSolid Carbide
Description
The Thin Bit LGT030D5R is a solid carbide indexable insert, grade Dura-Max 5000. Suited for universal.
Specifications
Cutting height0.2400
Cutting width0.0300
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert size030
Insert size code030
Insert styleLGT
Lead angle0
Manufacturer gradeDura-Max 5000
Material gradeC2; C3
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Overall length0.8250
Overall width0.1450
Primary workpiece materialUniversal
RakeNeutral
Rake angle0.00
StandardsANSI
