Thin Bit

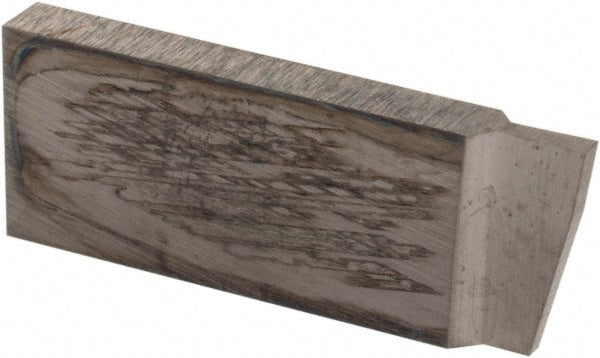

Solid Carbide Insert, Grade Dura-Max 5000 - Thin Bit SGI030D5
MFR# SGI030D5
$18.96List $21.72
Save 12%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDura-Max 5000
MaterialSolid Carbide
Description
The Thin Bit SGI030D5 is a solid carbide indexable insert, grade Dura-Max 5000. Suited for universal.
Specifications
Cutting height0.2400
Cutting width0.0300
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size030
Insert size code030
Insert styleSGI
Lead angle0
Manufacturer gradeDura-Max 5000
Material gradeC2; C3
Maximum depth of cut0.0900
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall length0.6500
Overall width0.0680
Primary workpiece materialUniversal
RakeNeutral
Rake angle0.00
StandardsANSI
