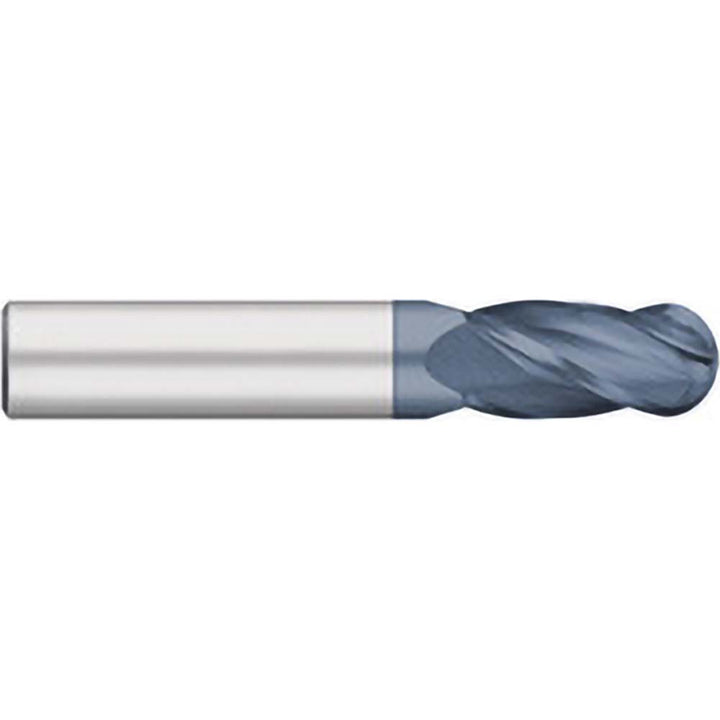

1/2" 4-Flute Solid Carbide Ball End Mill, AlTiN - Titan USA TC11632

MFR# TC11632Series Carbide - 4 Flute - Ball - 30 Helix, General Purpose End Mills

$77.02List $98.78 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Titan USA TC11632 is a 1/2 4-flute Solid Carbide (Carbide) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 1 length of cut, 3 overall length. Series Carbide - 4 Flute - Ball - 30 Helix, General Purpose End Mills.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in1

Length typeStandard

Manufacturers catalog numberTC11632

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance+0.0000/-0.0020 in

Nose radius0.2500

Number of flutes4

Overall length in3

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Reach length in1

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
