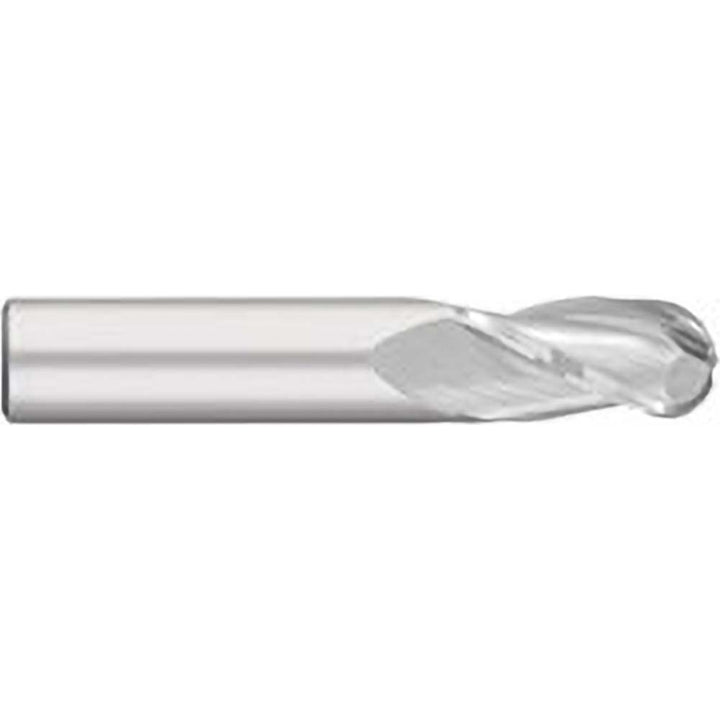

1/2in" 3-Flute Solid Carbide Ball End Mill - Titan USA TC12932

Titan USA

1/2in" 3-Flute Solid Carbide Ball End Mill - Titan USA TC12932

MFR# TC12932Series Carbide - 3 Flute - Ball - 30 Helix, General Purpose End Mills

$44.61List $56.22 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Titan USA TC12932 is a 1/2in 3-flute Solid Carbide (Carbide) ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 1in length of cut, 3in overall length. Series Carbide - 3 Flute - Ball - 30 Helix, General Purpose End Mills.

Specifications

ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1in
Length typeStandard
Manufacturers catalog numberTC12932
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.2500
Number of flutes3
Overall length in3in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Reach length in1
Shank diameter in1/2in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
