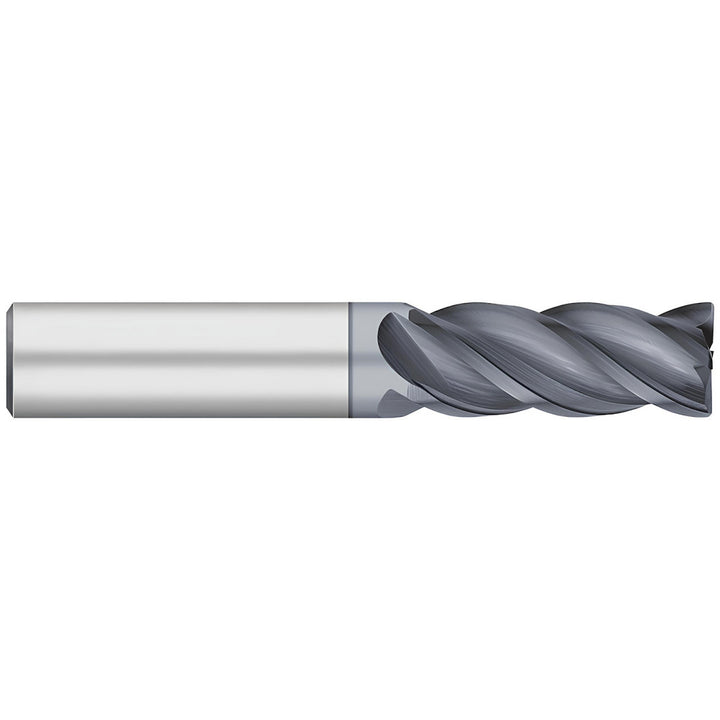

5/8in" 4-Flute Solid Carbide Corner Radius End Mill, ALCRO-MAX - Titan USA TC22692

Titan USA

5/8in" 4-Flute Solid Carbide Corner Radius End Mill, ALCRO-MAX - Titan USA TC22692

MFR# TC22692Series TC

$150.65List $189.86 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8in
Flutes4
MaterialSolid Carbide
CoatingALCRO-MAX

Description

The Titan USA TC22692 is a 5/8in 4-flute Solid Carbide corner radius end mill with a ALCRO-MAX finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 1-5/8in length of cut, 3-1/2in overall length. Series TC.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishALCRO-MAX
Coolant throughNo
Corner radius0.0300
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in1-5/8in
Length typeRegular
Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel
Material removal typeRoughing & Finishing
Mill diameter in5/8in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes4
Overall length in3-1/2in
PitchNormal
Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron
Reach length in1-5/8
Shank diameter in5/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
