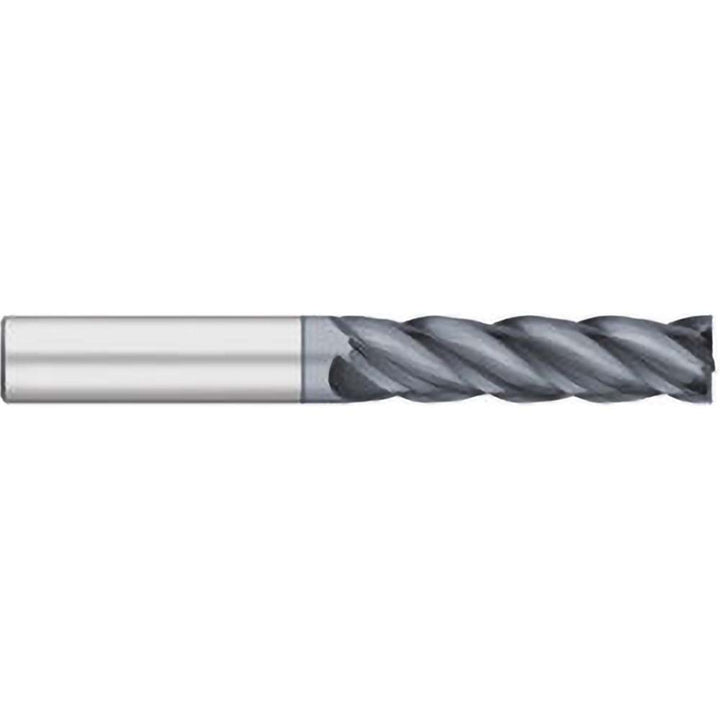

1/4" 4-Flute Solid Carbide Square End Mill, ALCRO-MAX - Titan USA TC23201

Titan USA

1/4" 4-Flute Solid Carbide Square End Mill, ALCRO-MAX - Titan USA TC23201

MFR# TC23201

$34.74List $43.78 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingALCRO-MAX

Description

The Titan USA TC23201 is a 1/4 4-flute Solid Carbide (Micrograin) square end mill with a ALCRO-MAX finish for longer tool life. 1-1/8 length of cut, 3 overall length.

Specifications

CentercuttingYes
Coating finishALCRO-MAX
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle38
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Material gradeMicrograin
Mill diameter in1/4
Number of flutes4
Overall length in3
Shank diameter in1/4
Variable helixNo
Variable indexYes
