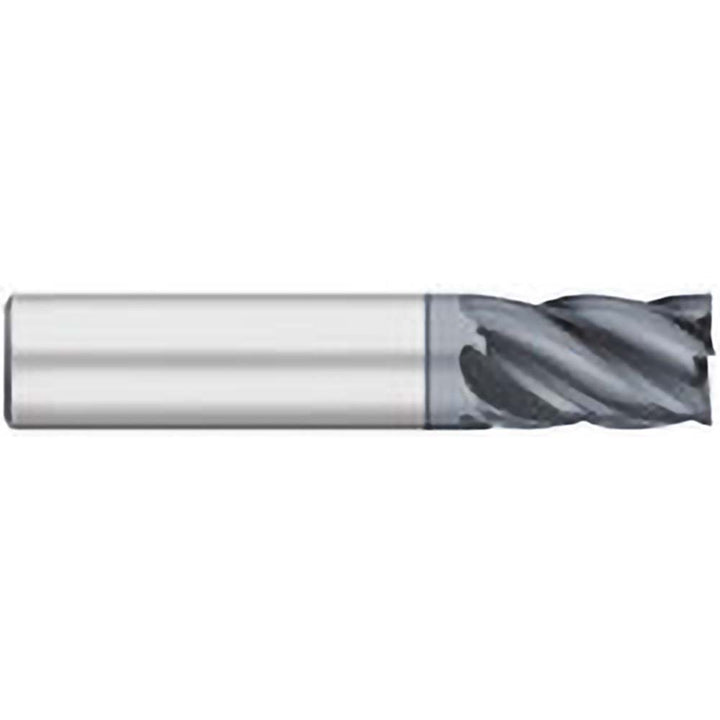

5/8" 5-Flute Solid Carbide Square End Mill, ALCRO-MAX - Titan USA TC25800

Titan USA

5/8" 5-Flute Solid Carbide Square End Mill, ALCRO-MAX - Titan USA TC25800

MFR# TC25800

$147.23List $188.82 Save 22%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes5
MaterialSolid Carbide
CoatingALCRO-MAX

Description

The Titan USA TC25800 is a 5/8 5-flute Solid Carbide (Micrograin) square end mill with a ALCRO-MAX finish for longer tool life. 3/4 length of cut, 3 overall length.

Specifications

CentercuttingYes
Coating finishALCRO-MAX
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle38
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Material gradeMicrograin
Mill diameter in5/8
Number of flutes5
Overall length in3
Shank diameter in5/8
Variable helixNo
Variable indexYes
