3/16" 5-Flute Solid Carbide Square End Mill, ALCRO-MAX - Titan USA TC25835

MFR# TC25835

$25.82List $33.11 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes5

MaterialSolid Carbide

CoatingALCRO-MAX

Description

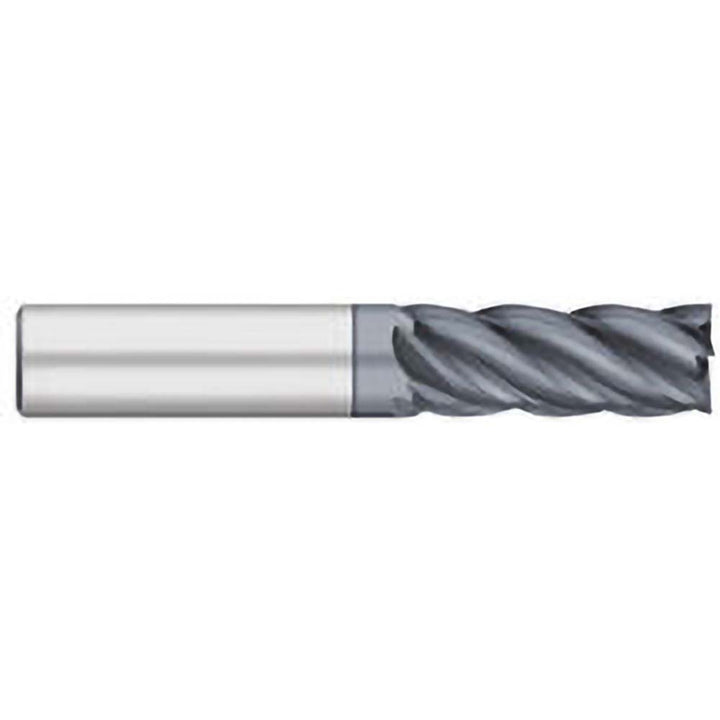

The Titan USA TC25835 is a 3/16 5-flute Solid Carbide (Micrograin) square end mill with a ALCRO-MAX finish for longer tool life. 9/16 length of cut, 2 overall length.

Specifications

CentercuttingYes

Coating finishALCRO-MAX

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle38

Length of cut in9/16

Length of cut range0.5000 - 0.6000

Material gradeMicrograin

Mill diameter in3/16

Number of flutes5

Overall length in2

Shank diameter in3/16

Variable helixNo

Variable indexYes
