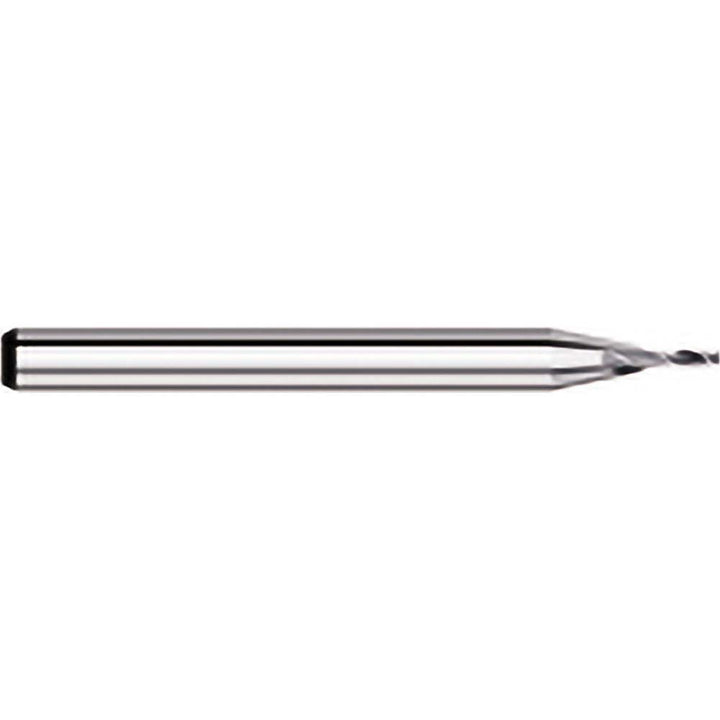

0.0500" 2-Flute Solid Carbide Square End Mill - Titan USA TC56050

Name: 0.0500" 2-Flute Solid Carbide Square End Mill - Titan USA TC56050
Brand: Titan USA
SKU: TC56050
Price: 13.71 USD
Availability: LimitedAvailability

MFR# TC56050Series Micro End Mills - 2 Flute - Square - 30 Helix - Stub & Regular Flute

$13.71List $16.47 Save 16%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Titan USA TC56050 is a 0.0500 2-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. 0.1500 length of cut, 1-1/2 overall length. Series Micro End Mills - 2 Flute - Square - 30 Helix - Stub & Regular Flute.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.1500

Material gradeMicrograin

Mill diameter0.0500

Number of flutes2

Overall length in1-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy

Shank diameter in1/8

Single or double endSingle

System of measurementDecimal Inch

Variable helixNo

Variable indexNo
