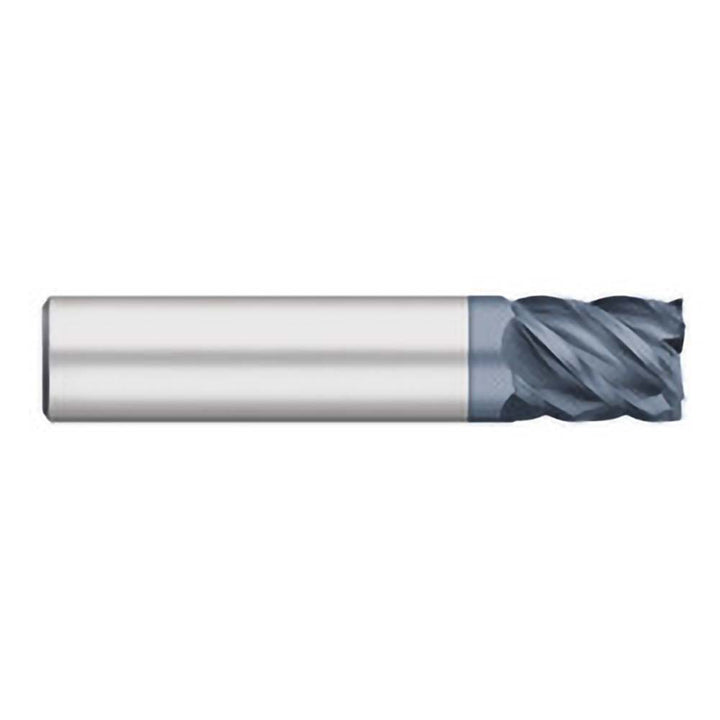

5/16" 5-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC61520

MFR# TC61520

$27.66List $35.48 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Titan USA TC61520 is a 5/16 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1/2 length of cut, 2 overall length.

Specifications

CentercuttingYes

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle45

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Material gradeMicrograin

Mill diameter in5/16

Number of flutes5

Overall length in2

Shank diameter in5/16

Variable helixNo

Variable indexNo
