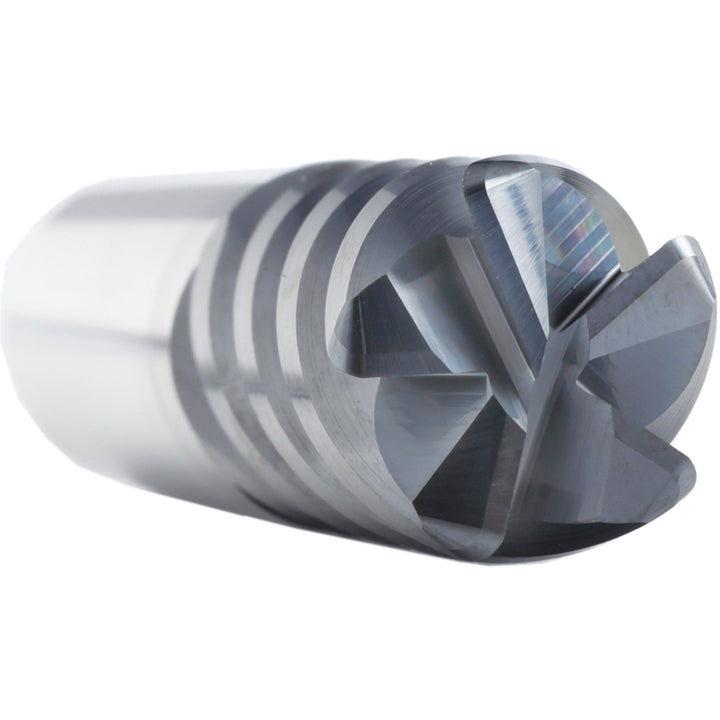

5/16" 5-Flute Solid Carbide Square End Mill, AlCrN - Supermill 5251849

MFR# 5251849Series SM5F

$50.62List $64.93 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes5

MaterialSolid Carbide

CoatingAlCrN

Description

The Supermill 5251849 is a 5/16 5-flute Solid Carbide (Micrograin) square end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, high-temp alloy, cast iron. 1/2 length of cut, 2 overall length. Series SM5F.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coating finish familyAlCrN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Material gradeMicrograin

Mill diameter in5/16

Number of flutes5

Overall length in2

Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy; Cast Iron

Shank diameter in5/16

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
