5/16" 5-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC61920

Titan USA

5/16" 5-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC61920

MFR# TC61920

$36.80List $46.37 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

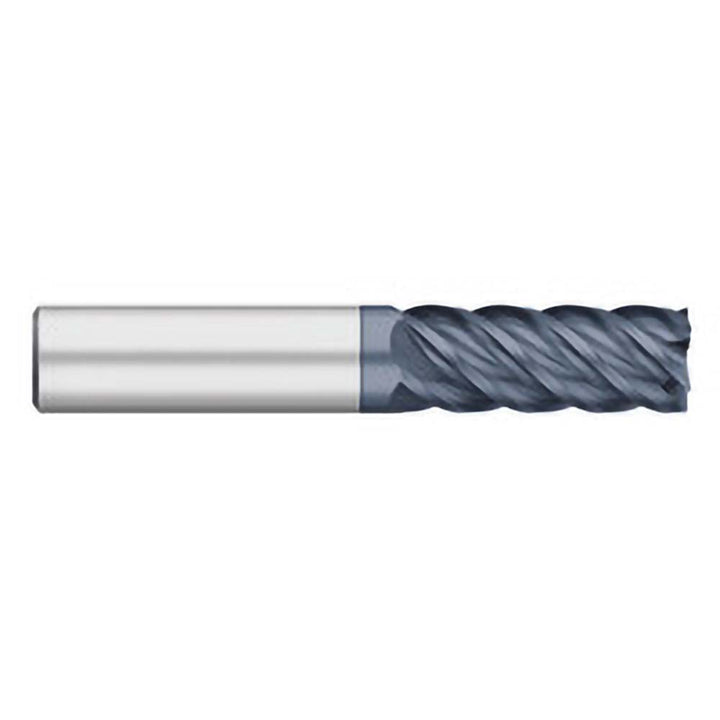

The Titan USA TC61920 is a 5/16 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 7/8 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle45
Length of cut in7/8
Length of cut range0.8000 - 1.0000
Material gradeMicrograin
Mill diameter in5/16
Number of flutes5
Overall length in2-1/2
Shank diameter in5/16
Variable helixNo
Variable indexNo
