Titan USA

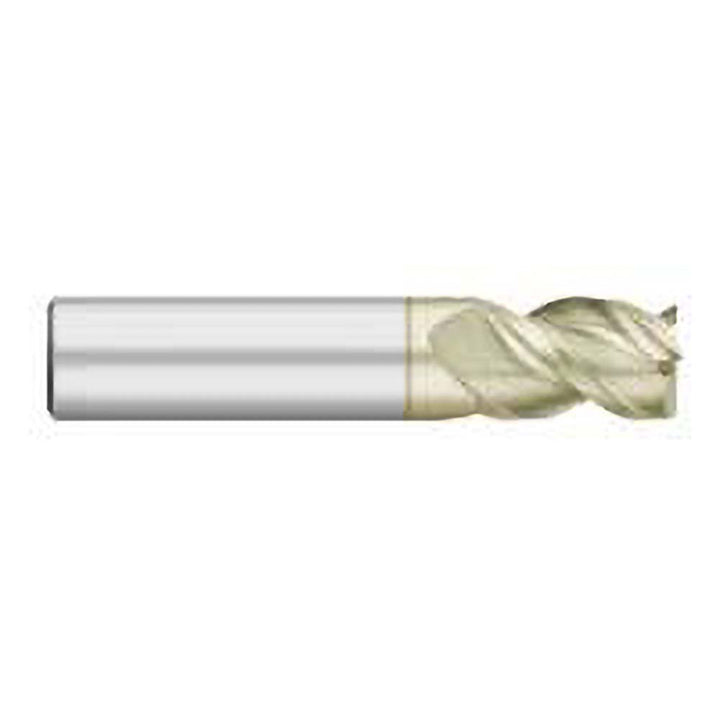

5/8" 3-Flute Solid Carbide Square End Mill, ZrN - Titan USA TC63012
MFR# TC63012
$161.64List $207.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The Titan USA TC63012 is a 5/8 3-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 3 overall length.
Specifications
CentercuttingYes
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle45
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Material gradeMicrograin
Mill diameter in5/8
Number of flutes3
Overall length in3
Shank diameter in5/8
Variable helixNo
Variable indexNo
