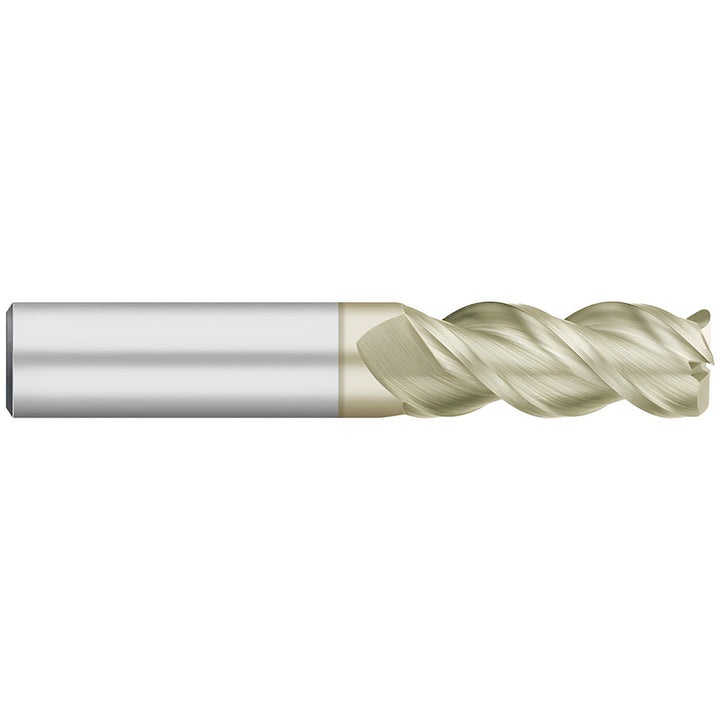

3/16" 3-Flute Solid Carbide Corner Radius End Mill, ZrN - Titan USA TC63602

Name: 3/16" 3-Flute Solid Carbide Corner Radius End Mill, ZrN - Titan USA TC63602
Brand: Titan USA
SKU: TC63602
Price: 27.01 USD
Availability: InStock

MFR# TC63602Series TC

$27.01List $34.05 Save 20%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes3

MaterialSolid Carbide

CoatingZrN

Description

The Titan USA TC63602 is a 3/16 3-flute Solid Carbide corner radius end mill with a ZrN finish for longer tool life. Suited for non-ferrous metal. 3/8 length of cut, 2 overall length. Series TC.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishZrN

Coolant throughNo

Corner radius0.0100

Corner radius tolerance-0.0010 to 0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut in3/8

Length typeStub

Material applicationNon-Ferrous Metal; Aluminum; Brass; Bronze

Material removal typeRoughing

Mill diameter in3/16

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes3

Overall length in2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in3/8

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
