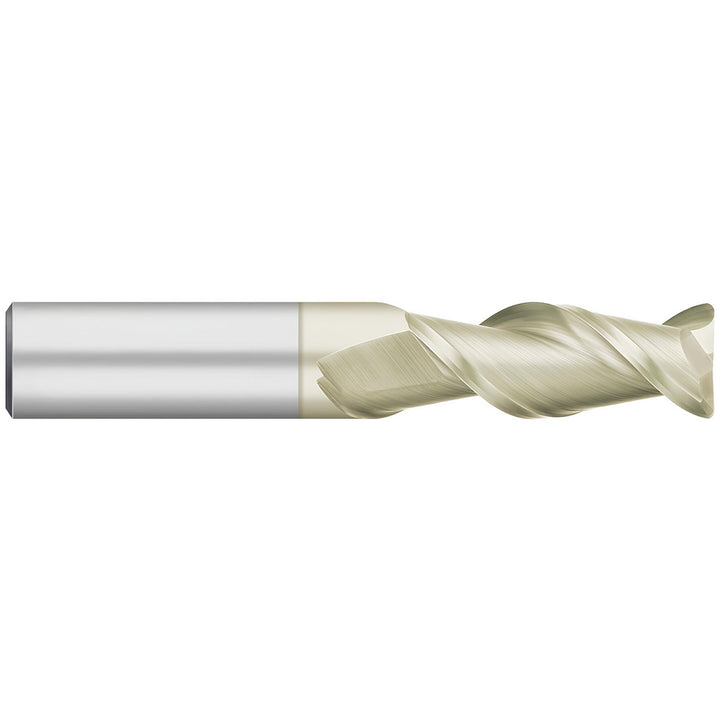

5/16in" 2-Flute Solid Carbide Corner Radius End Mill, ZrN - Titan USA TC65320

Titan USA

5/16in" 2-Flute Solid Carbide Corner Radius End Mill, ZrN - Titan USA TC65320

MFR# TC65320Series TC

$84.35List $108.19 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16in
Flutes2
MaterialSolid Carbide
CoatingZrN

Description

The Titan USA TC65320 is a 5/16in 2-flute Solid Carbide corner radius end mill with a ZrN finish for longer tool life. Suited for non-ferrous metal. 1-3/8in length of cut, 3in overall length. Series TC.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishZrN
Coolant throughNo
Corner radius0.0200
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in1-3/8in
Length typeLong
Material applicationNon-Ferrous Metal; Aluminum; Brass; Bronze
Material removal typeRoughing
Mill diameter in5/16in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes2
Overall length in3in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in1-3/8
Shank diameter in5/16in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
