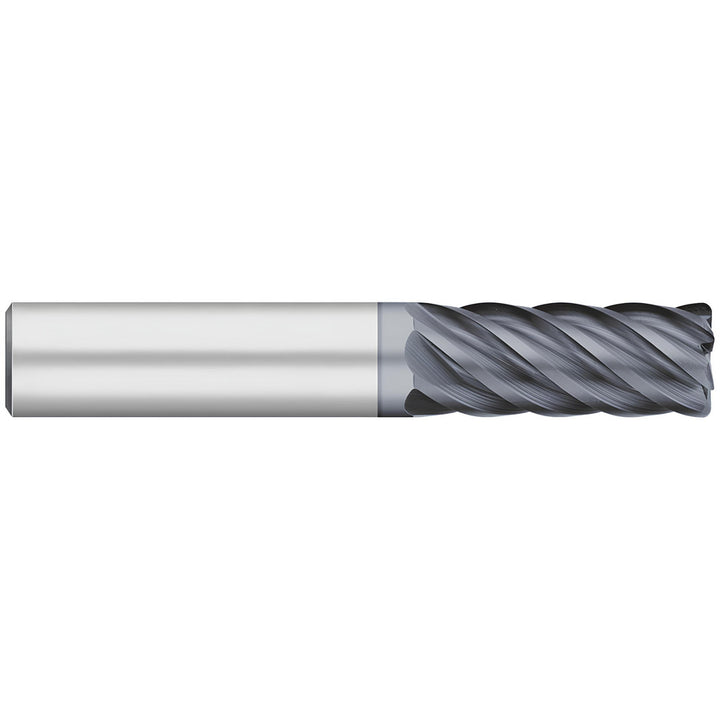

1/2" 6-Flute Solid Carbide Corner Radius End Mill, ALCRO-MAX - Titan USA TC67132

MFR# TC67132Series TC

$93.62List $120.07 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes6

MaterialSolid Carbide

CoatingALCRO-MAX

Description

The Titan USA TC67132 is a 1/2 6-flute Solid Carbide corner radius end mill with a ALCRO-MAX finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 1-1/4 length of cut, 3 overall length. Series TC.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishALCRO-MAX

Coolant throughNo

Corner radius0.0300

Corner radius tolerance-0.0010 to 0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut in1-1/4

Length typeRegular

Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel

Material removal typeFinishing

Mill diameter in1/2

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes6

Overall length in3

PitchClose

Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron

Reach length in1-1/4

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
