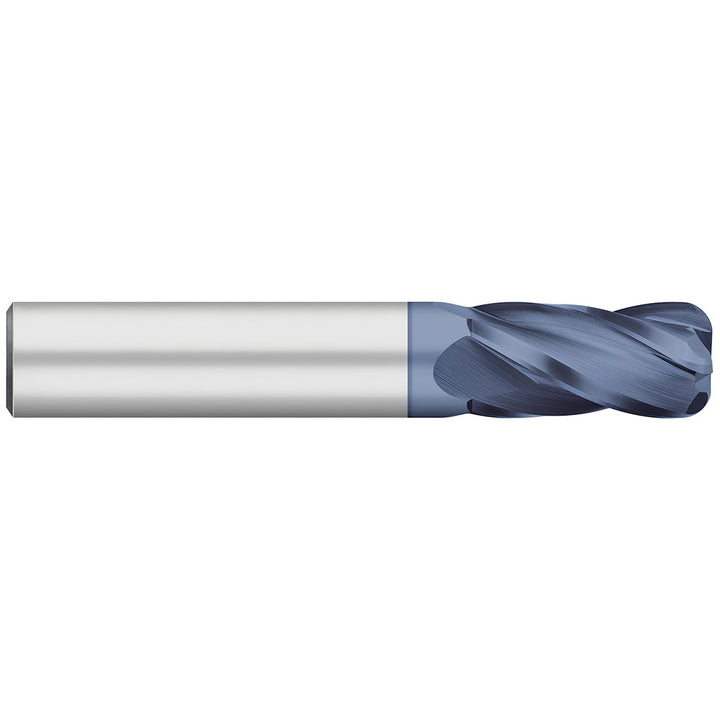

1/4in" 4-Flute Solid Carbide Corner Radius End Mill - Titan USA TC73822
MFR# TC73822Series TC
$16.07List $19.64
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Titan USA TC73822 is a 1/4in 4-flute Solid Carbide corner radius end mill. 1/2in length of cut, 2in overall length. Series TC.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0450
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1/2in
Material removal typeRoughing & Finishing
Mill diameter in1/4in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes4
Overall length in2in
PitchNormal
Reach length in1/2
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
