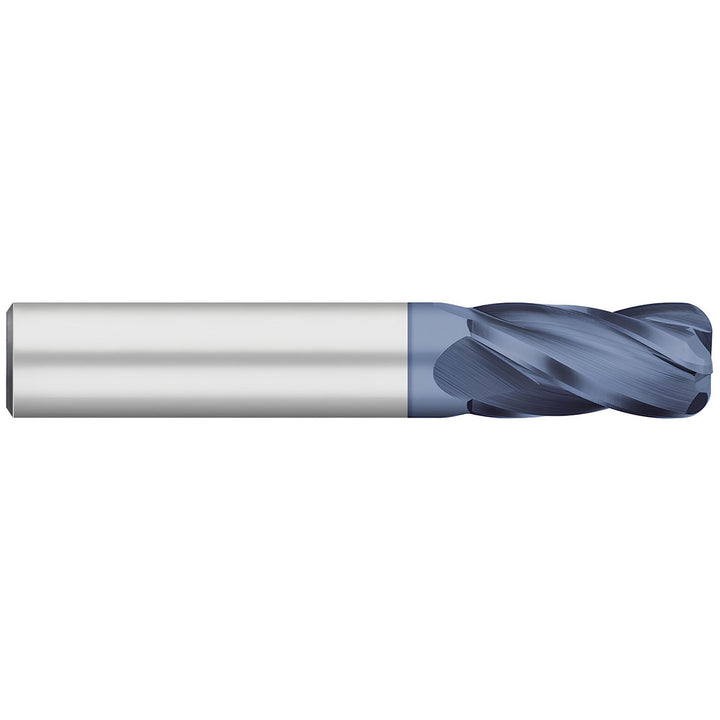

3/4" 4-Flute Solid Carbide Corner Radius End Mill - Titan USA TC73876

Titan USA

3/4" 4-Flute Solid Carbide Corner Radius End Mill - Titan USA TC73876

MFR# TC73876Series TC

$112.39List $144.14 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Titan USA TC73876 is a 3/4 4-flute Solid Carbide corner radius end mill. 1 length of cut, 3 overall length. Series TC.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0300
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1
Material removal typeRoughing & Finishing
Mill diameter in3/4
Mill diameter tolerance-0.0030/0.0000 in
Number of flutes4
Overall length in3
PitchNormal
Reach length in1
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
