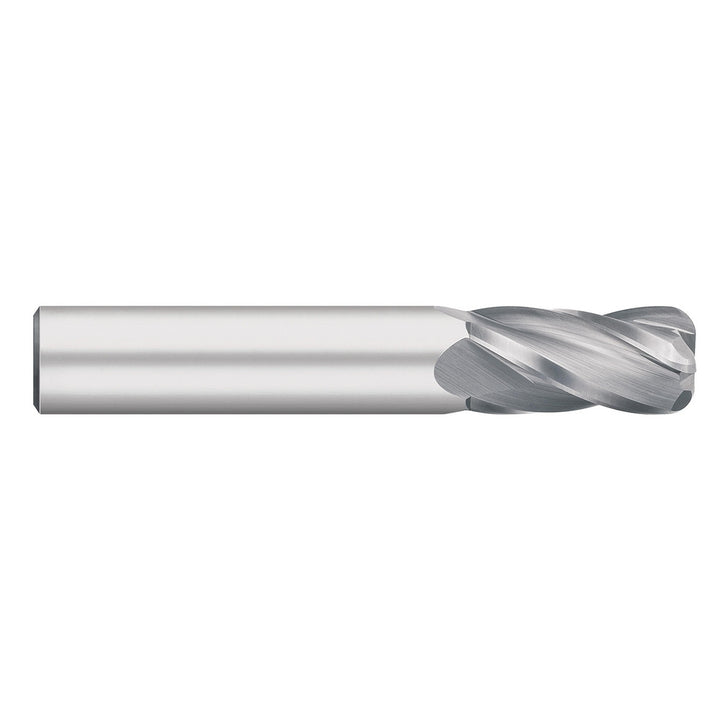

1/2" 4-Flute Solid Carbide Corner Radius End Mill - Titan USA TC74047

Titan USA

1/2" 4-Flute Solid Carbide Corner Radius End Mill - Titan USA TC74047

MFR# TC74047Series General Purpose End Mills - Carbide - 4 Flute - Corner Radius - 30 Helix

$49.88List $62.86 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide

Description

The Titan USA TC74047 is a 1/2 4-flute Solid Carbide corner radius end mill. 1 length of cut, 3 overall length. Series General Purpose End Mills - Carbide - 4 Flute - Corner Radius - 30 Helix.

Specifications

CentercuttingYes
ChipbreakerNo
Corner radius0.0200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Length of cut in1
Mill diameter in1/2
Number of flutes4
Overall length in3
Shank diameter in1/2
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
