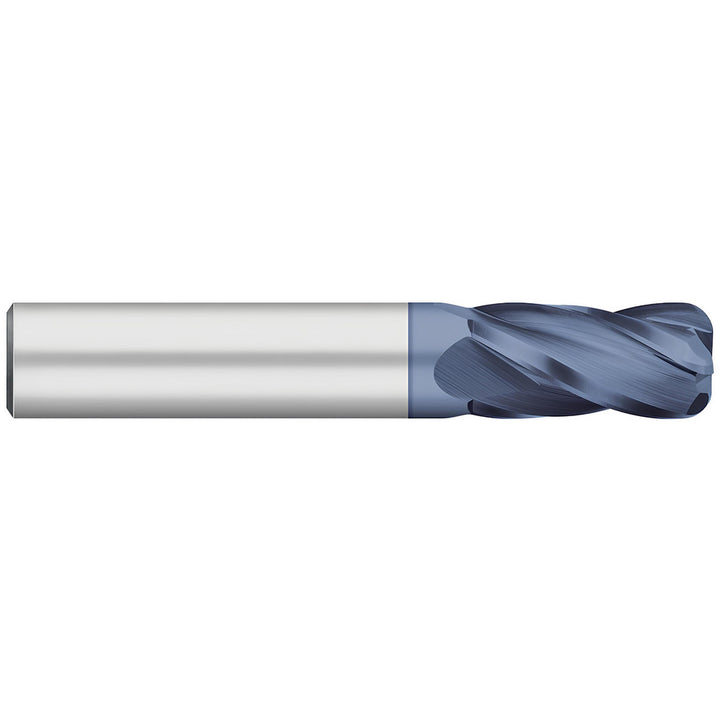

5/16in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Titan USA TC74130
MFR# TC74130Series TC
$42.77List $53.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16in
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Titan USA TC74130 is a 5/16in 4-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 13/16in length of cut, 2-1/2in overall length. Series TC.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0300
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in13/16in
Length typeRegular
Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel
Material removal typeRoughing & Finishing
Mill diameter in5/16in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes4
Overall length in2-1/2in
PitchNormal
Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron
Reach length in13/16
Shank diameter in5/16in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
