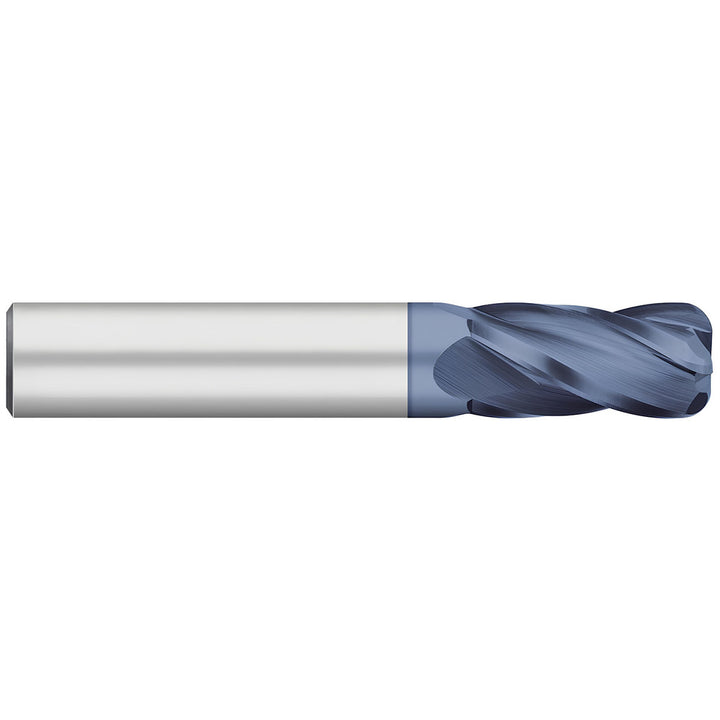

3/4in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Titan USA TC74458
MFR# TC74458Series TC
$249.03List $319.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4in
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Titan USA TC74458 is a 3/4in 4-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 2-1/4in length of cut, 5in overall length. Series TC.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.1250
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in2-1/4in
Length typeLong
Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel
Material removal typeRoughing & Finishing
Mill diameter in3/4in
Mill diameter tolerance-0.0030/0.0000 in
Number of flutes4
Overall length in5in
PitchNormal
Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron
Reach length in2-1/4
Shank diameter in3/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
