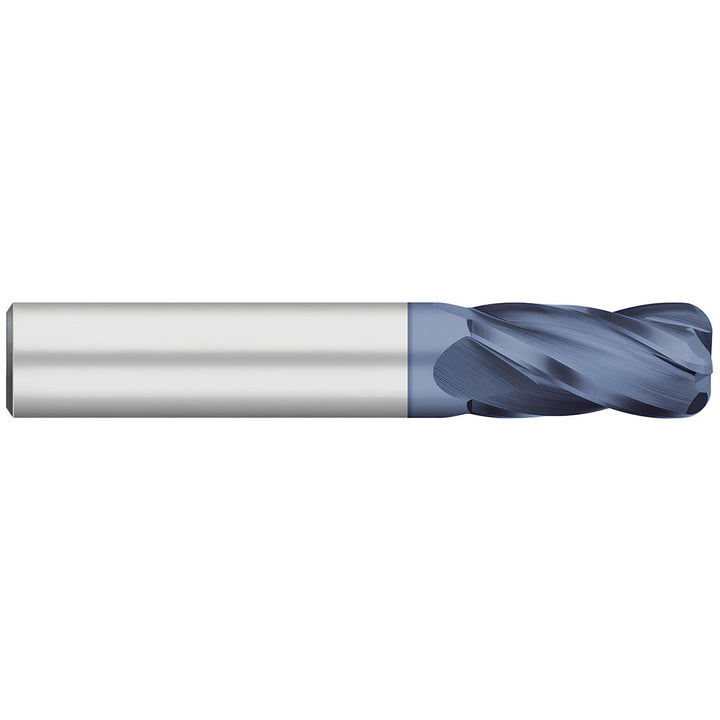

1in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Titan USA TC74679

Titan USA

1in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Titan USA TC74679

MFR# TC74679Series TC

$619.62List $794.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1in
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Titan USA TC74679 is a 1in 4-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 4in length of cut, 7in overall length. Series TC.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.1250
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in4in
Length typeExtra Long
Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel
Material removal typeRoughing & Finishing
Mill diameter in1in
Mill diameter tolerance-0.0030/0.0000 in
Number of flutes4
Overall length in7in
PitchNormal
Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron
Reach length in4
Shank diameter in1in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
