7/32" 3-Flute Solid Carbide Square End Mill, TiCN - Titan USA TC90814

Titan USA

7/32" 3-Flute Solid Carbide Square End Mill, TiCN - Titan USA TC90814

MFR# TC90814

$25.44List $32.62 Save 22%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/32
Flutes3
MaterialSolid Carbide
CoatingTiCN

Description

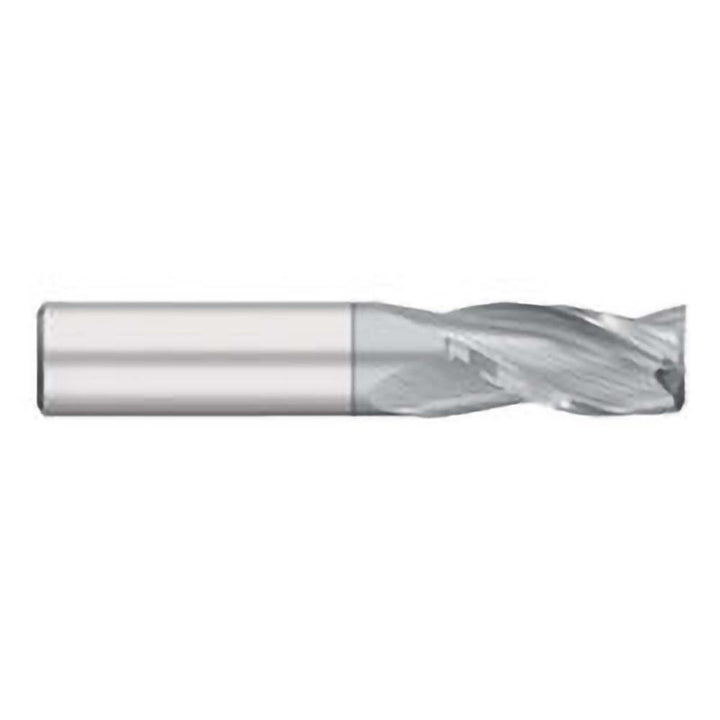

The Titan USA TC90814 is a 7/32 3-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 5/8 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Material gradeMicrograin
Mill diameter in7/32
Number of flutes3
Overall length in2-1/2
Shank diameter in1/4
Variable helixNo
Variable indexNo
