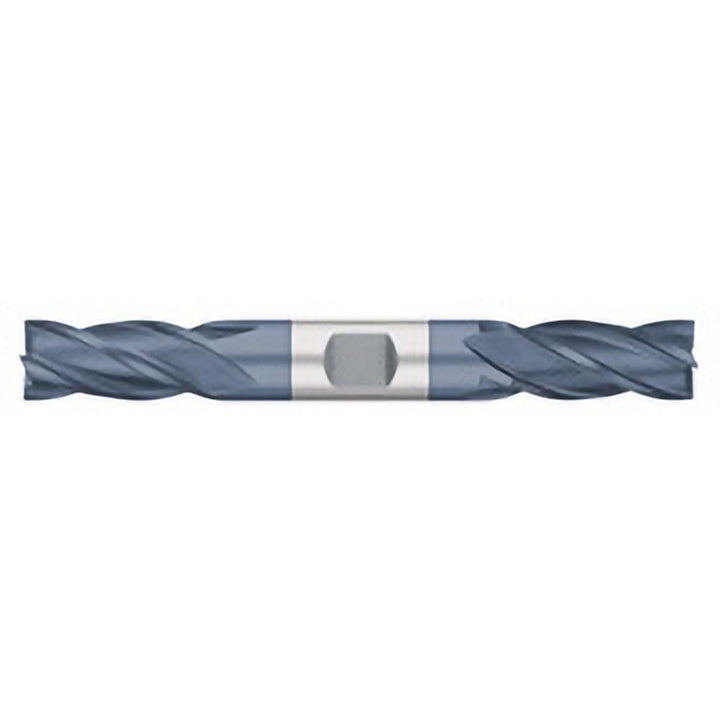

1/2" 4-Flute Cobalt Square End Mill, AlTiN - Titan USA TE82426

Titan USA

1/2" 4-Flute Cobalt Square End Mill, AlTiN - Titan USA TE82426

MFR# TE82426

$76.67List $98.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialCobalt
CoatingAlTiN

Description

The Titan USA TE82426 is a 1/2 4-flute Cobalt (M42) square end mill with a AlTiN finish for longer tool life. 1 length of cut, 4-1/8 overall length.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Material gradeM42
Mill diameter in1/2
Number of flutes4
Overall length in4-1/8
Shank diameter in1/2
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
