Tool-Flo

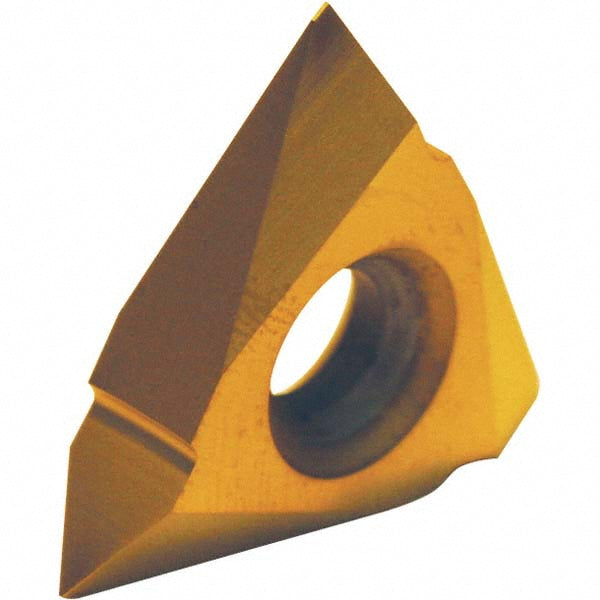

0.3750" IC Solid Carbide Insert, Grade AC3R, AlTiN - Tool-Flo 0111000AC3R
MFR# 0111000AC3RSeries On-Edge
$24.16List $30.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3R
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 0111000AC3R is a solid carbide indexable insert, grade AC3R, AlTiN coated. Suited for universal.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0030
Cutting directionNeutral
External threads per inch8-36
Hole shapeCountersunk
Inscribed circle0.3750
Insert materialSolid Carbide
Insert size code32
Insert styleTPMC
Internal threads per inch8-36
Manufacturer gradeAC3R
Maximum corner radius0.0050
Primary workpiece materialUniversal
RakePositive
Rake angle5
Thickness0.1270
Thread standard60 Degree V
Thread typeExternal; Internal
