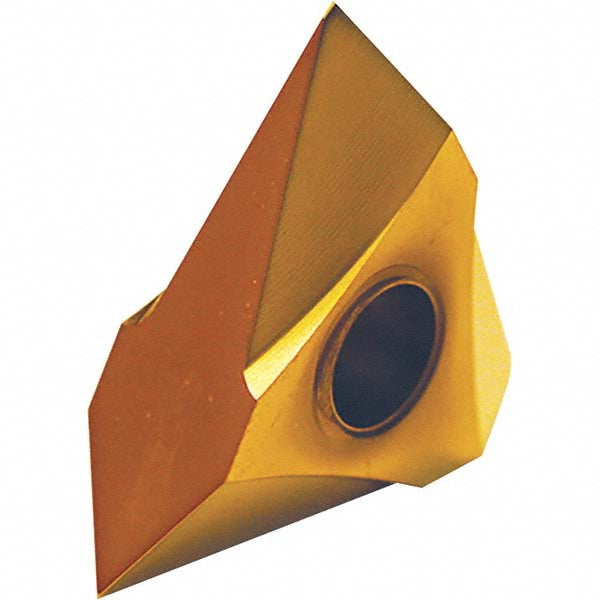

0.5000" IC Solid Carbide Insert, Grade AC3R, AlTiN - Tool-Flo 0139000AC3R
MFR# 0139000AC3RSeries On-Edge
$25.23List $32.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3R
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 0139000AC3R is a solid carbide indexable insert, grade AC3R, AlTiN coated. Suited for universal.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0050
Cutting directionNeutral
External threads per inch5-24
Hole shapeCylindrical
Inscribed circle0.5000
Insert materialSolid Carbide
Insert size code43
Insert styleTNMA
Internal threads per inch5-24
Manufacturer gradeAC3R
Maximum corner radius0.0070
Primary workpiece materialUniversal
RakeNeutral
Thickness0.1890
Thread standard60 degrees V
Thread typeExternal; Internal
