Tool-Flo

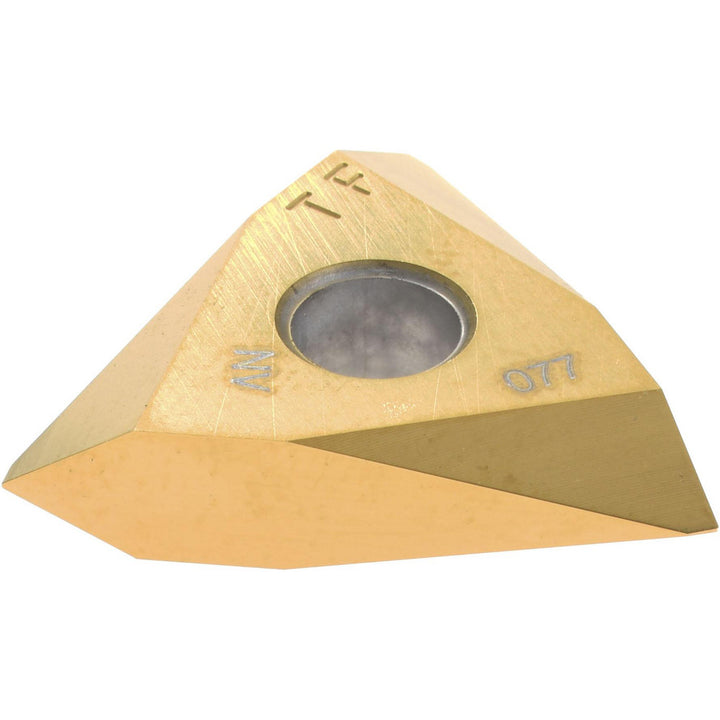

1/2" IC Solid Carbide Insert, Grade GP50, TiN - Tool-Flo 0139000N4C
MFR# 0139000N4CSeries On-Edge
$23.36List $29.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeGP50
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 0139000N4C is a solid carbide indexable insert, grade GP50, TiN coated. Suited for cast iron, steel.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0030
Cutting directionNeutral
Hole shapeCylindrical
Inscribed circle in1/2
Insert materialSolid Carbide
Insert size code43
Insert styleTNMA
Internal threads per inch5-24
Manufacturer gradeGP50
Material gradeC5/C6/C7
Maximum corner radius0.0050
Primary workpiece materialCast Iron; Steel
RakeNeutral
Rake angle0
Thickness0.1890
Thread standard60 Deg V
Thread typeInternal
