Tool-Flo

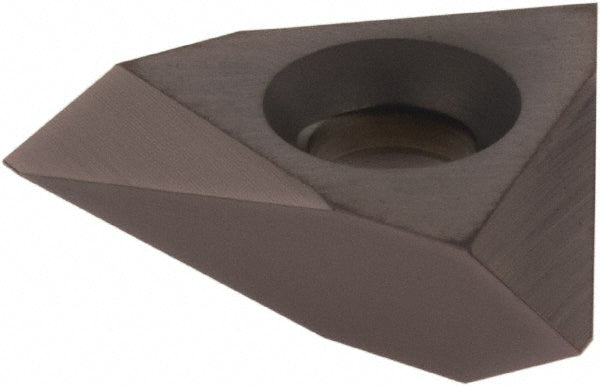

0.5000" IC Solid Carbide Insert, Grade AC3R, AlTiN - Tool-Flo 0141000AC3R
MFR# 0141000AC3RSeries On-Edge
$25.23List $32.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3R
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 0141000AC3R is a solid carbide indexable insert, grade AC3R, AlTiN coated. Suited for universal.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0000
Cutting directionNeutral
External threads per inch5-24
Hole diameter0.2030
Inscribed circle0.5000
Insert materialSolid Carbide
Insert size code43
Insert styleTNMC
Internal threads per inch5-24
Manufacturer gradeAC3R
Primary workpiece materialUniversal
RakeNeutral
Thickness0.1870
Thread standard60 Degree V
Thread typeExternal; Internal
