Tool-Flo

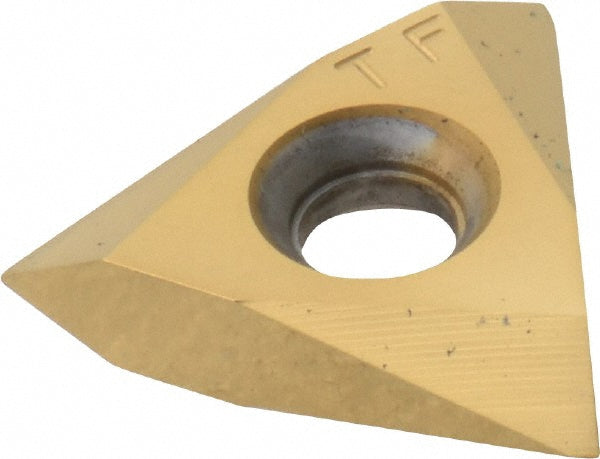

1/2" IC Solid Carbide Insert, Grade GP50, TiN - Tool-Flo 0141000N4C
MFR# 0141000N4CSeries On-Edge
$23.79List $29.99
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeGP50
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 0141000N4C is a solid carbide indexable insert, grade GP50, TiN coated. Suited for cast iron, steel.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0030
Cutting directionNeutral
Hole shapeCountersunk
Inscribed circle in1/2
Insert materialSolid Carbide
Insert size code43
Insert styleTNMC
Internal threads per inch5-24
Manufacturer gradeGP50
Material gradeC4/C8
Maximum corner radius0.0050
Primary workpiece materialCast Iron; Steel
RakeNeutral
Rake angle0
Thickness0.1890
Thread standard60 Degree V
Thread typeInternal
