Tool-Flo

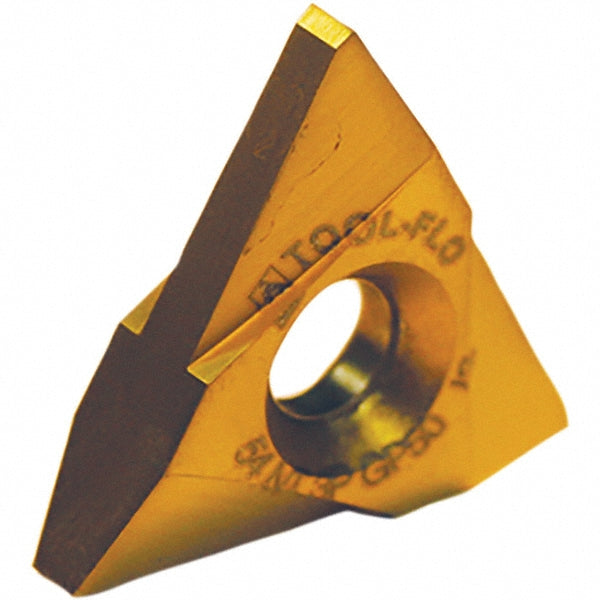

0.6250" IC Solid Carbide Insert, Grade AC50, AlTiN - Tool-Flo 0253030AC50E
MFR# 0253030AC50ESeries On-Edge
$32.97List $42.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC50
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 0253030AC50E is a solid carbide indexable insert, grade AC50, AlTiN coated. Suited for cast iron, steel.
Specifications
Coating finishAlTiN
Coating processPVD
Cutting directionNeutral
External threads per inch3
Hole shapeCountersunk
Inscribed circle0.6250
Insert materialSolid Carbide
Insert size code54
Insert styleTNMC
Internal threads per inch3
Manufacturer gradeAC50
Primary workpiece materialCast Iron; Steel
RakeNeutral
Thickness0.2520
Thread standardAcme
Thread typeExternal; Internal
Width of cutting tip0.1184
