Tool-Flo

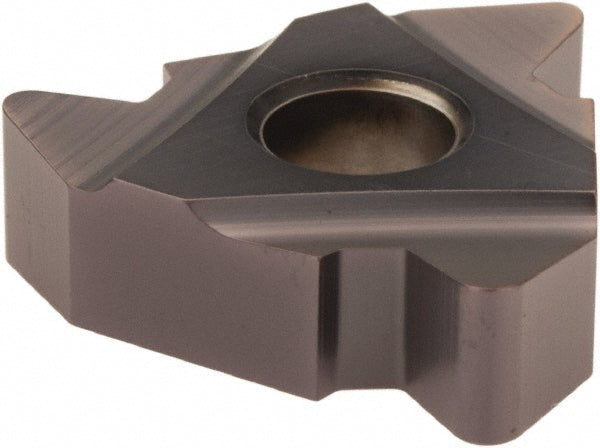

5/8" IC Solid Carbide Insert, Grade AC54, Coated - Tool-Flo 10495AC54F
MFR# 10495AC54FSeries Laydown
$36.78List $47.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
GradeAC54
MaterialSolid Carbide
CoatingCoated
Description
The Tool-Flo 10495AC54F is a solid carbide indexable insert, grade AC54, Coated coated. Suited for cast iron, steel.
Specifications
ChipbreakerA
Coating finishCoated
Coating processPVD
Corner radius0.0380
Hole diameter0.2500
Included angle60
Inscribed circle in5/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code54
Insert styleLDS54
Manufacturer gradeAC54
Material gradeC5; C6
Pitch (mm)1.00
Primary workpiece materialCast Iron; Steel
Thickness in1/4
Threads per inch4
Thread standardAPI
Thread typeExternal; Internal
