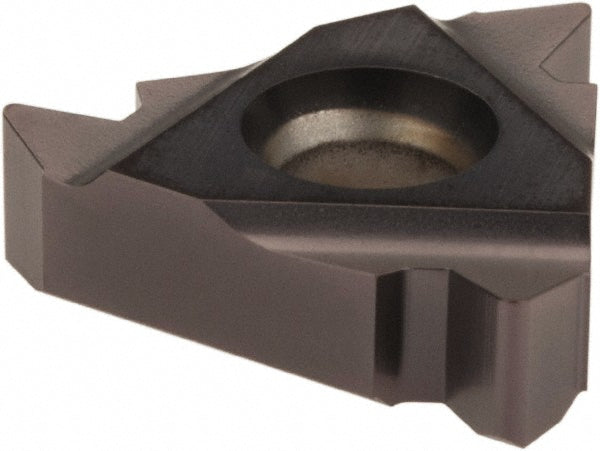

3/8" IC Carbide Insert, Grade AC22, AlTiN - Tool-Flo 5006610AC22A
MFR# 5006610AC22ASeries Laydown
$19.18List $24.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeAC22
MaterialCarbide
CoatingAlTiN
Description
The Tool-Flo 5006610AC22A is a carbide indexable insert, grade AC22, AlTiN coated. Suited for universal.
Specifications
ChipbreakerA2
Coating finishAlTiN
Coating processPVD
Corner radius0.0120
Cutting edge to theoretical edge length0.0600
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16ER
Manufacturer gradeAC22
Pitch (mm)1.00
Primary workpiece materialUniversal
Thickness0.1450
Threads per inch10
Thread standardUN
Thread typeExternal
